葡萄酒旅游公寓
下载所需积分: 2
概念
对一座处于废弃状态的老酒厂进行改造，名为Casal da Vinha Grande，俯瞰着Aldeia Galega da Merceana，旨在将其改造成理想的葡萄酒旅游住宅单元。
设计的重点是保持现有建筑的和谐形象和参照，建筑坐落在一个突出的山坡上，遵循与自然的协调与尊重的逻辑。
项目
酒厂
恢复老酒厂，保持其原有的卓越形象，为其提供生活条件，以容纳社交空间、大型接待区、客厅和餐厅，并在现有的混凝土酒罐后面设置厨房和社交卫生间。
尊重原有建筑的记忆，保留酒罐、压榨机、混凝土地面以及所有木屋顶桁架的结构元素。
外立面偶尔被撕开，东面和西面朝向葡萄园的大开口，内部由经过天然油处理的松木百叶窗保护，保持材料的原始外观。
现有的烟囱欢迎并定义了在客厅设计的大壁炉的位置。
在现有墙体上，采用黑色软木颗粒和白色水泥石灰砂浆制成的外部保温系统 “ETICS”，在尊重原有建筑美学的同时，确保必要的热舒适性。
现有屋顶的木支撑结构得以保留和修复，尊重其美学价值，但其构造细节通过铺设松木衬板重新定义，作为新热绝缘和防水绝缘的支撑基础，以及回收屋顶瓦的基础。
房间
扩展建筑位于较低的水平，部分埋入地下，容纳卧室。
它上升到葡萄园的水平，像一块沉重的当地石材，雕刻以确保楼梯的开口、游泳池的形状以及房间开口的深凹。
面向南方的阳台俯瞰山坡和葡萄园，确保隐私和阳光保护，并隐藏一个垂直狭窄的开口，以照亮和通风浴室。
一座无尽的游泳池，从石块顶部雕刻而成，向东包围体量。
隧道
一条暴露的自然混凝土地下隧道，流畅而有机的设计，连接建筑，唤起葡萄酒的主题。
一条黑暗的通道，通过圆形天窗照亮。
户外空间
增强葡萄园的“力量”，作为一个在四季中变化很大的景观，通往葡萄园的通道保持了原有的设计。
定义了一个车辆停车区，利用地面的轻微凹陷，隐藏在植被中。
围绕酒厂铺设了一条稳定的碎石小径，呈有机流畅的形状，穿行于大型地中海树木和香草植物之间。
面向北方，从厨房进入，有一个打谷场、烧烤区，供人们聚会，结合葡萄酒品尝，配有轻钢遮阳结构。一个藤架葡萄藤巩固了葡萄园的生长。
Concept
Remodelling an old Winery in a state of ruin, known as Casal da Vinha Grande, overlooking the Aldeia Galega da Merceana, adapting it to a housing unit ideal for wine tourism.
The design focus was to maintain the image of harmony and reference of the existing construction, set on a promontory, conceived in a logic of coherence and respect for nature
The Project
of the winery

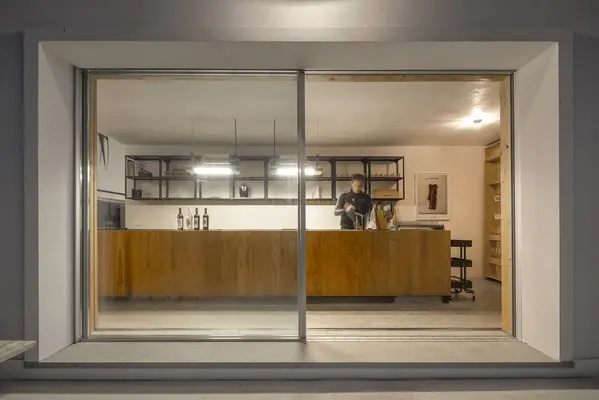

Recovering the old winery, keeping its original outstanding image, providing it with living conditions to host social spaces, a large reception, living and dining room and hidden behind the existing concrete wine deposits, a kitchen, and a social bathroom.
Respect the memories of the pre-existing buildings, keeping the wine deposits, the wine press, and the concrete floor and all the structural elements of the wooden roof trusses.
The facades are occasionally torn apart, with large openings facing east and west over the vineyard, protected on the inside by natural oil treated pine shutters, maintaining the raw appearance of the material.
The existing chimney welcomes and defines the placement of the huge fireplace designed in the living area.
On the existing walls, external insulation system, ETICS, made of black cork agglomerate and white hydraulic lime mortar, assures the necessary thermal comfort while respecting the original aesthetics of the existing construction.
The wooden support structure of the existing roof is maintained and recovered, respecting its aesthetic value, but its constructive detail is redefined with the laying of a pine lining, the support base for the new thermal and watertight insulation, and for the recycled roof tile.
of the rooms
Housing the bedrooms, the extension building is located at a lower level, partially buried.
It rises up to the level of the vineyard, like a heavy local stone, sculpted to ensure the opening of the staircase, the shape of the pool and the deep voids in the rooms' openings.
The balconies, facing south over the hillside and the vineyard, guarantee privacy and sun protection and hide a vertical, narrow opening that illuminates and ventilates the bathroom.
An endless swimming pool, carved out of the top of the stone block, and encloses the volume to the east.
of the tunnel
An underground tunnel in exposed natural concrete, with a fluid and organic design, connects the buildings evoking the wine theme.
A dark pathway, though spotlighted by a circular skylight.
of the outdoor spaces
Enhancing the ‘strength’ of the vineyard, as a landscape that changes so much throughout the seasons, the access route has been kept to it’s original drawing.
A vehicle parking area is defined, taking advantage of a slight depression in the land, hidden by vegetation.
A path around the winery is laid out in stabilized gravel, organic and fluid, circulating between large mediterranean trees and aromatic plants.
Facing north, with access from the kitchen, there is a threshing floor, a barbecue area for mingling, associated with wine tasting with a light steel shading structure. A trellis vine that consolidates the growth of the vineyard.
