烟台，这座坐落于山东半岛济南之滨的沿海城市，以其起伏的地形、鲜美的海产与冬日飘雪著称。MDO设计团队受委托在凤凰山景区南侧新城区中轴线的转角处，打造一座地标性建筑。
周边建筑多为高层办公与住宅楼群。MDO通过形态、材质与景观关系的创新设计，使新建筑成为千篇一律开发中的一抹亮色。
核心构想——雪晶平面
传统展览中心常采用单向循环动线，中央庭院或沙模型成为唯一焦点，空间缺乏远距互动。我们突破常规，将公共交流区置于核心位置，周边功能如雪晶分支般与之相连。建筑成为虚实相生的统一体，如同雪晶结构般，无论实体或虚空皆成韵律。景观区域渗入建筑内部，与展区形成光影对话。
建筑形态
外观犹如一组覆以玻璃裙摆的凹槽鼓形体，高度随内部功能变化。银色铝板饰面柔和映射天空与周边景致。6米高无框玻璃幕墙采用统一尺寸的曲面玻璃与玻璃肋结构，形成简洁韵律。
内部空间
每个外围体量都是独立定义的空间，可自由演变出独特体验。下沉式中央空间强化了休息区过渡与天花高度，环形廊柱促进各功能区的视觉联系。手工涂抹的威尼斯红石膏天花蜿蜒至中央吧台上方的天窗。
螺旋装置
最大鼓形体量内的城市模型，以青铜方顶螺旋上升至黑暗，通过镜面反射形成通天塔的幻象，隐喻探索未知未来的升腾。
阶梯剧场
在雪晶最开放处设置圆形阶梯空间，满足会议、活动与儿童游戏需求。全透明围合向社区发出参与邀约。
该项目获得当地政府一致好评，拟将"小雪晶"改造为凤凰公园社区设施或展览空间，成为新区活力焦点。
项目团队
设计范围：建筑设计、室内设计、家具配置
设计总监：Justin Bridgland、Jaycee Chui
建筑设计师：Justin Bridgland、Carlo Alberto Follo
室内设计师：高大、白晓宇、雷梦青、刘雄杰
景观设计：HZS景观设计
结构工程：烟台建筑设计研究院
结构顾问：Bespoke Creative Engineering
Yantai is a coastal city on the Shandong Peninsula in Jinan, defined by its hilly topography, its incredible fresh sea food and its winter snow.
MDO were commissioned to create a landmark at the corner of the central axis of a new development area, south of the Fengshan Scenic Area.
The surrounding building fabric is typified by tall blocks of office and residences. MDO imagined the new building as a contrast to the homogeneity of the new development, through form, materiality and relationship with the landscape.
The central heart – The snow-crystal plan
The typical exhibition centre is designed as a loop or a one way path. Often a courtyard or site model is placed at the centre as a focus, circulation is linear, lacking interconnection between distant spaces.
We decided to challenge this norm by creating a public area at its centre, a place for discussion and interaction. We wanted to design the space to be more human centric and welcoming.
The other functions are arranged as peripheral crystal 'ramifications', connected to the central heart.
The architecture becomes unity of positive and negative spaces. Like a snow-crystal structure that can be read as a pattern in its presence or absence of matter. The landscape areas, entering the sides of the building, become part of the whole rhythmical dialogue of the exhibition spaces, bringing light to the interior space.
Architectural form

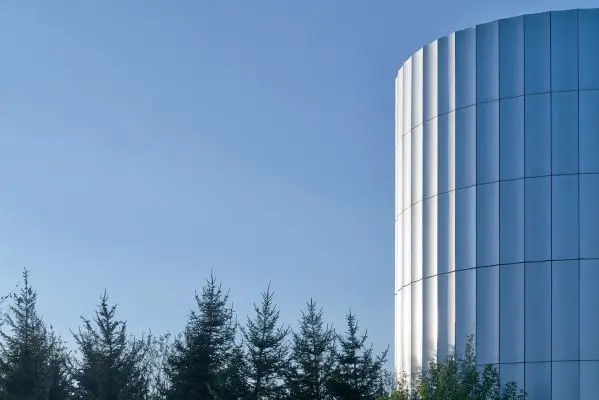

From the exterior, the building appears as a series of fluted drums wrapped in a glass skirt. The drums vary in height depending on the internal function. They are finished with silver aluminum panels which gently reflect the sky and surrounding landscape.
This form sets the rhythm of the visit, in terms of light and dynamic relationship with the exterior.
The glass skirt employs 6m tall frameless panels. The facade was rationalized to use a single size and radius of curved glass, with glass fins structure.
Interior
The interior functions have been conceived as a collection. As each peripheral volume is a defined space, so environments are free to evolve and create a series of unique experiences.
The central space is sunk down to define the transition to the lounge area and to enhance the ceiling height. The step creates a column lined circular gallery, which encourages visual links between the different functions across the main space.
The ceiling is finished in a hand painted Venetian red plaster which folds up to a central skylight above the central bar.
Spiral design
Within the largest drum volume is the city model, which reflects the urban scale of the development.
A bronze square ceiling spirals upwards into the darkness and is reflected back by a mirror, in order to create the illusion of an internal tower, allusion to the ascension to the unknown, the future.
Stepped amphitheater
In the most open part of the snow-crystal, we created a stepped amphitheater. The space is created for circular meetings, group activities and for children to play; a multifunctional space that can be adapted to different purposes.
It addresses the neighborhood through its fully transparent envelope, inviting the local community to join and gather.
The project has received unamious praise from the local government who are planning how to use the building in the future. There are plans for it to be transformed into a community facility for Fenghan Park or as a community exhibition or gallery space. They believe that “the Little Snow Crystal” will become a focal point for the new community.
CREDITS
Design Scope: Architecture Design, Interior Design, FF&E
Design Director: Justin Bridgland, Jaycee Chui
Architecture Designer: Justin Bridgland , Carlo Alberto Follo
Interior Designer: Da Gao, Xiaoyu Bai, Mengqing Lei, Xiongjie Liu
Landscape Designer: HZS Landscape Designers
Structural Engineering: Yantai Architectural Design & Research Co., Ltd.
Structural Engineering Consultant: Bespoke Creative Engineering
